Tool

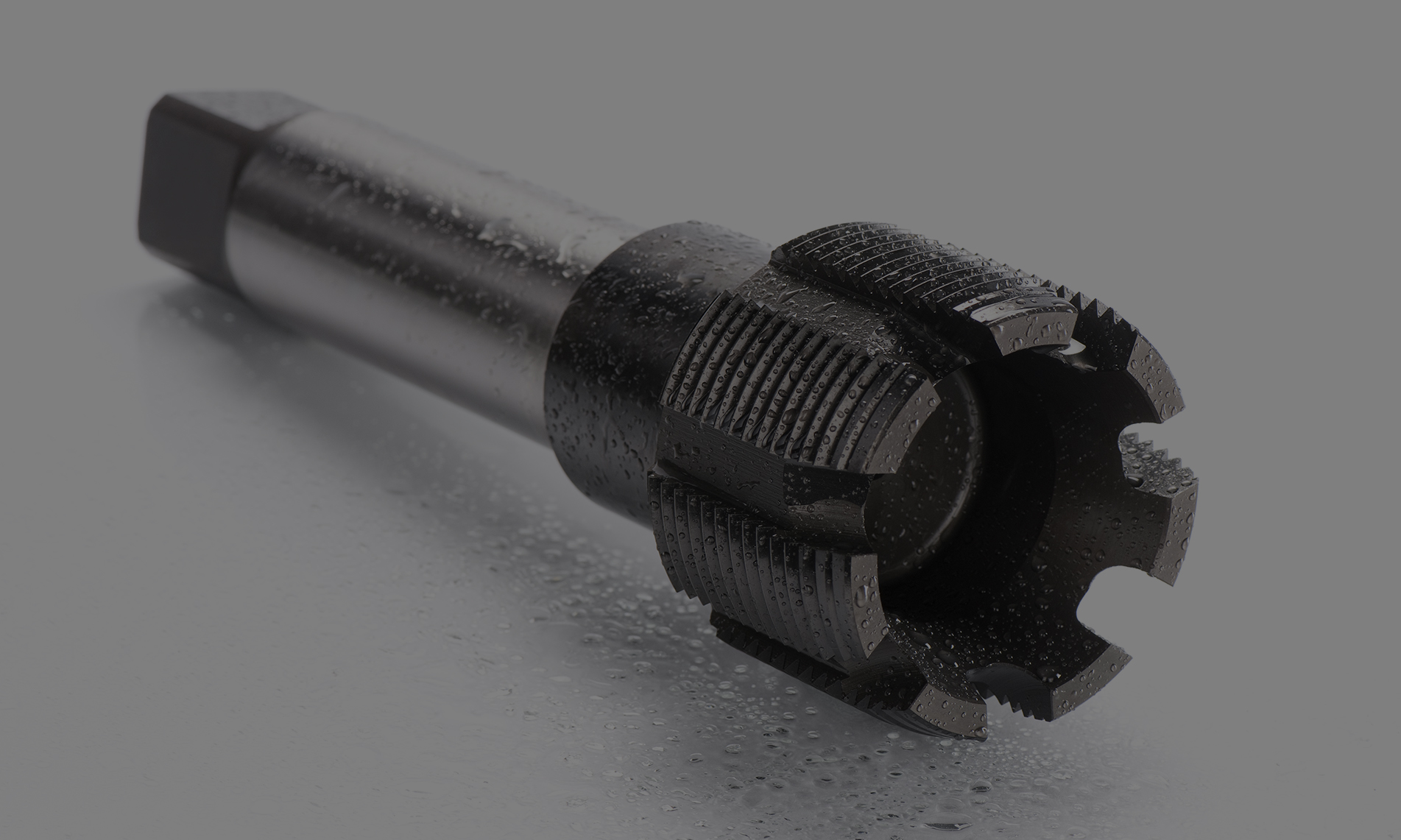

N470V-4
Overview
Material groups
Characteristics
Technical drawing
Profile sketch
Tool data
| ID | D1 | Ø d1 | Tol | P | l1 | l2 | d2 | a |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 102581 | M48 | 48.00 | 6H | 5.000 | 240.0 | 52.0 | 32.00 | 24.0 | 5 | 43.00 |
Product range N470V-4 M48 6H
| ID | D1 | Ø d1 | Tol | P | l1 | l2 | d2 | a |
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 102575 | M30 | 30.00 | 6H | 3.500 | 180.0 | 39.0 | 22.00 | 18.0 | 5 | 26.50 |
| 102576 | M33 | 33.00 | 6H | 3.500 | 180.0 | 39.0 | 22.00 | 18.0 | 5 | 29.50 |
| 102577 | M36 | 36.00 | 6H | 4.000 | 200.0 | 43.0 | 25.00 | 20.0 | 5 | 32.00 |
| 102578 | M39 | 39.00 | 6H | 4.000 | 200.0 | 43.0 | 25.00 | 20.0 | 5 | 35.00 |
| 102579 | M42 | 42.00 | 6H | 4.500 | 220.0 | 47.0 | 28.00 | 22.0 | 5 | 37.50 |
| 102580 | M45 | 45.00 | 6H | 4.500 | 220.0 | 47.0 | 28.00 | 22.0 | 5 | 40.50 |
| 102581 | M48 | 48.00 | 6H | 5.000 | 240.0 | 52.0 | 32.00 | 24.0 | 5 | 43.00 |
| 102582 | M52 | 52.00 | 6H | 5.000 | 240.0 | 52.0 | 32.00 | 24.0 | 5 | 47.00 |
| 102583 | M56 | 56.00 | 6H | 5.500 | 260.0 | 58.0 | 36.00 | 29.0 | 6 | 50.50 |
| 102584 | M60 | 60.00 | 6H | 5.500 | 260.0 | 58.0 | 36.00 | 29.0 | 6 | 54.50 |
| 102585 | M64 | 64.00 | 6H | 6.000 | 290.0 | 64.0 | 40.00 | 32.0 | 6 | 58.00 |
| 102586 | M68 | 68.00 | 6H | 6.000 | 290.0 | 64.0 | 40.00 | 32.0 | 6 | 62.00 |
