Tool

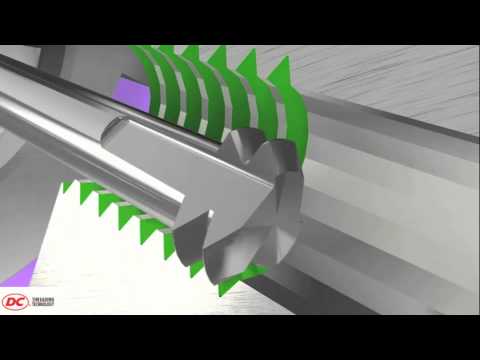

GWI3067VX
Overview
Material groups
Characteristics
Technical drawing
Profile sketch
Play
Tool data
| ID | D1 | Ø d1 | P | l1 | l2 | l3 | d2 |
|
|
|---|---|---|---|---|---|---|---|---|---|
| 187453 | M1.4 | 1.06 | 0.300 | 40.0 | 0.6 | 4.6 | 4.00 | 3 | 1.10 |
Product range GWI3067VX M1.4
| ID | D1 | Ø d1 | P | l1 | l2 | l3 | d2 |
|
|
|---|---|---|---|---|---|---|---|---|---|
| 187453 | M1.4 | 1.06 | 0.300 | 40.0 | 0.6 | 4.6 | 4.00 | 3 | 1.10 |
| 187454 | M1.6 | 1.20 | 0.350 | 40.0 | 0.7 | 5.3 | 4.00 | 3 | 1.25 |
| 187455 | M1.8 | 1.40 | 0.350 | 40.0 | 0.7 | 5.9 | 4.00 | 3 | 1.45 |
| 187456 | M2 | 1.54 | 0.400 | 40.0 | 0.8 | 6.6 | 4.00 | 3 | 1.60 |
| 194337 | M2.3 | 1.84 | 0.400 | 40.0 | 0.8 | 7.5 | 4.00 | 3 | 1.90 |
| 187457 | M2.5 | 1.98 | 0.450 | 40.0 | 0.9 | 8.1 | 4.00 | 3 | 2.05 |
| 194338 | M2.6 | 2.08 | 0.450 | 40.0 | 0.9 | 8.4 | 4.00 | 3 | 2.15 |
| 187458 | M3 | 2.43 | 0.500 | 51.0 | 1.0 | 9.9 | 5.00 | 4 | 2.50 |
| 187459 | M3.5 | 2.81 | 0.600 | 51.0 | 1.2 | 11.6 | 6.00 | 4 | 2.90 |
| 187460 | M4 | 3.20 | 0.700 | 51.0 | 1.4 | 13.3 | 6.00 | 4 | 3.30 |
| 187461 | M5 | 4.08 | 0.800 | 51.0 | 1.6 | 16.5 | 8.00 | 4 | 4.20 |
| 187462 | M6 | 4.85 | 1.000 | 51.0 | 2.0 | 19.8 | 8.00 | 4 | 5.00 |
| 187463 | M8 | 5.95 | 1.250 | 75.0 | 2.5 | 27 | 6.00 | 5 | 6.80 |
| 187464 | M10 | 7.95 | 1.500 | 83.0 | 3.0 | 33 | 8.00 | 5 | 8.50 |
| 187465 | M12 | 9.95 | 1.750 | 95.0 | 3.5 | 40 | 10.00 | 5 | 10.20 |
| 187466 | M14 | 10.95 | 2.000 | 120.0 | 4.0 | 52 | 12.00 | 5 | 12.00 |
| 187467 | M16 | 10.95 | 2.000 | 120.0 | 4.0 | 52 | 12.00 | 5 | 14.00 |
| 187468 | M18 | 13.95 | 2.500 | 135.0 | 5.0 | 65 | 14.00 | 6 | 15.50 |
| 187469 | M20 | 13.95 | 2.500 | 135.0 | 5.0 | 65 | 14.00 | 6 | 17.50 |
